Specification: 1ml, 2.25ml (Fits 1ml/2.25ml Autoinjector)
Made with high-quality glass tubes for the container body and high-quality formula system rubber plungers.
Customized for customers. Product standards comply with ISO and YBB standards.
Quality system complies with ISO15378 and GMP standards.
Specification: 0.5-10ml
PRE-WASHED READY FOR USE(RFU)
ENTIRE SEAL ASEPSIS PRODUCTION WORKSHOP
Germany equipment

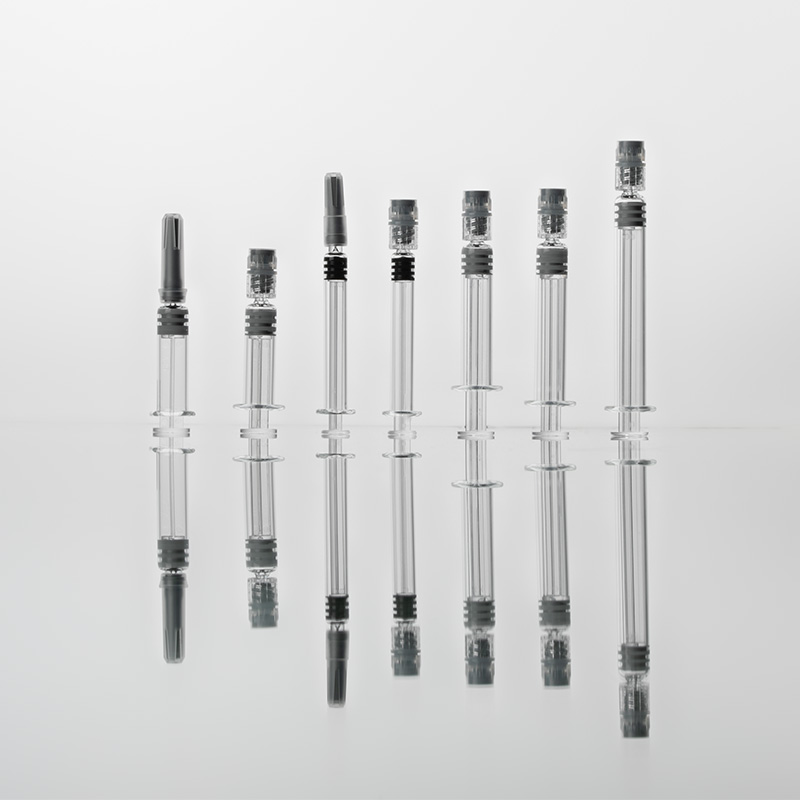

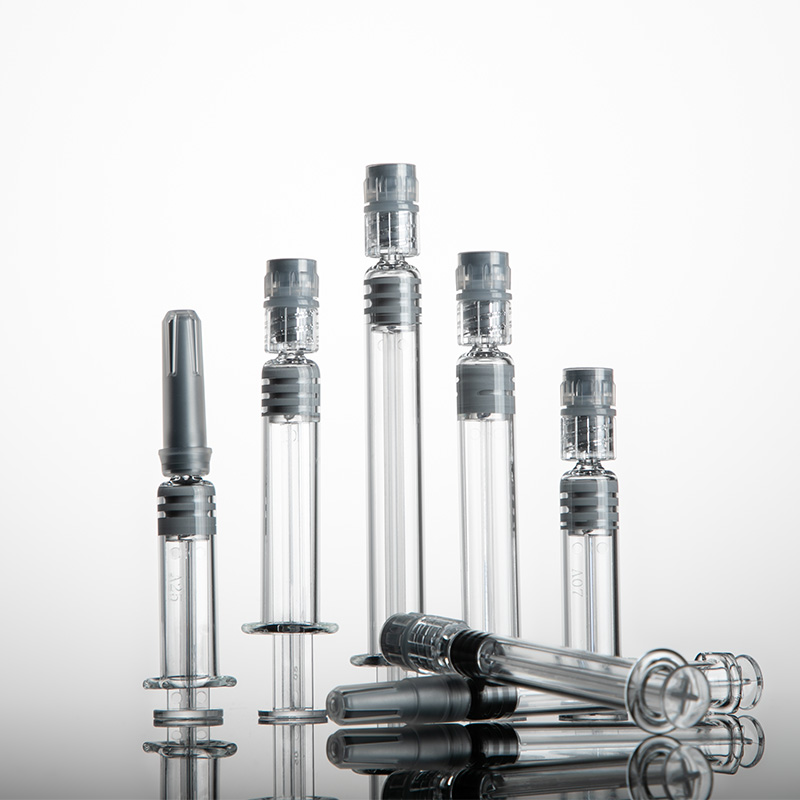

Prefilled syringe assembly is a sterile medical packaging composed of container,
cover (protective cap), plug, injection needle, etc., which has two functions: storing
drugs and ordinary injection. The dosage is clear and accurate during use, reducing
secondary contamination of drugs and improving the efficiency of use.
High-quality glass tube is used to make the container body;
Rubber piston with high-quality formula system is used;
Customer-customized sloping shoulder or flat shoulder;
Customer-customized volume scale products;
Simplified clinical operation and convenient use. Compared with vial packaging,
the operation time is reduced by 50%, which is suitable for self-injection in emergency
and field occasions.
Professional intelligent manufacturing of all imported high-end equipment;
The post-molding inspection and needle insertion process in the production area is a
Class D clean area, and the cleaning and siliconization inner packaging process is a Class
C+A clean area; Product standards meet ISO and YBB standards;
The quality system meets ISO15378 and pharmaceutical GMP standards;
The testing center has been accredited by CNAS laboratory;
Adhere to the production concept that advanced equipment is the premise, quality
system is the basis, process control is the key, and supervision and testing is the
guarantee, and continuously and efficiently produce high-quality products.
Product Specification
Pre-Filled Syringe Assembly
Glass tube Specification
Spec(ml) | OD(mm) | ID(mm) |
1.00long | 8.15 | 6.35 |
1.00long | 10.85 | 8.65 |
2.00 | 10.85 | 8.65 |
2.25 | 10.85 | 8.65 |
3.00 | 10.85 | 8.65 |
Packaging Information
Type | PFS(with needle) | PFS(luer lock) |
Nest Board | 100/160PCS PP | 100PCS PP |
Nest Box | 100/160PCS PS | 100PCS PS |
Paper Cover | 1073B(HDPE) | 1073B(HDPE) |
Sealing Paper | 1073B(HDPE) waterborne coated paper | 1073B(HDPE) waterborne coated paper |
Overhead Pocket | 1059B+10S | 1059B+10S |
Specification: 1ml, 2.25ml (Fits 1ml/2.25ml Autoinjector) Made with high-quality glass tubes for the container body and high-quality formula system rubber plungers. Customized for customers. Product standards comply with ISO and YBB standards.
