Device Features

l  Fully automatic loading and unloading, high degree of automation

l  Use of robots to feed, short loading CT time

l  Use of sensors to identify the position of each workpiece, which is convenient for the system database to track the information

l  Use of PLC to control the logic action of each station in the line, with good stability

l  Use of HMI, easy to adjust the production parameters and process data on the floor

l  Use of modules and sensors to realize the action of each workstation, simple control

l  Each station fixture circulates along the circular line, fast flow speed for parts and high efficiency

l  Product assembly yield of 99.2% (actual measurement from a third party company), high efficiency

l  Labor cost is significantly reduced compared with manual operation

Contact us for detail Datasheet

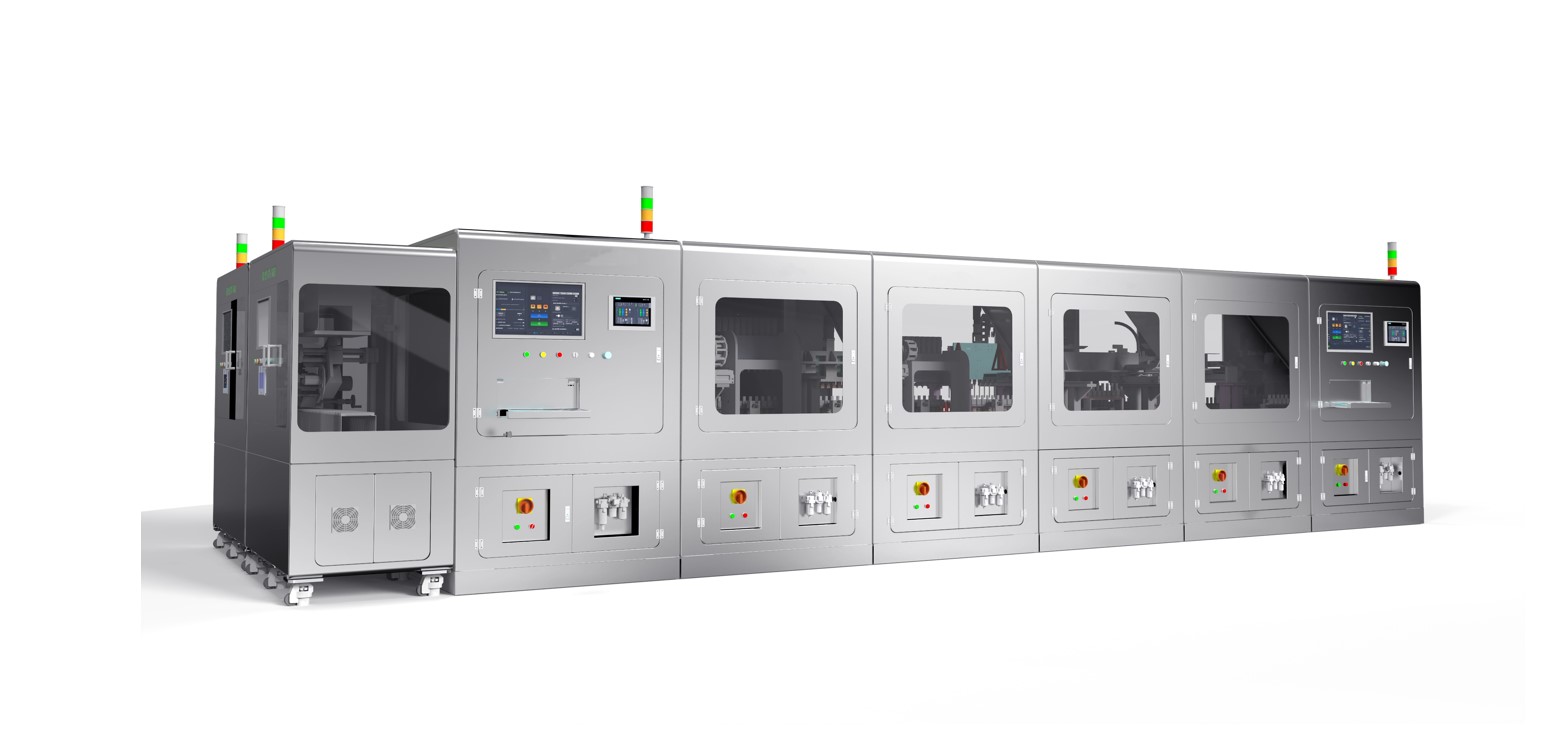

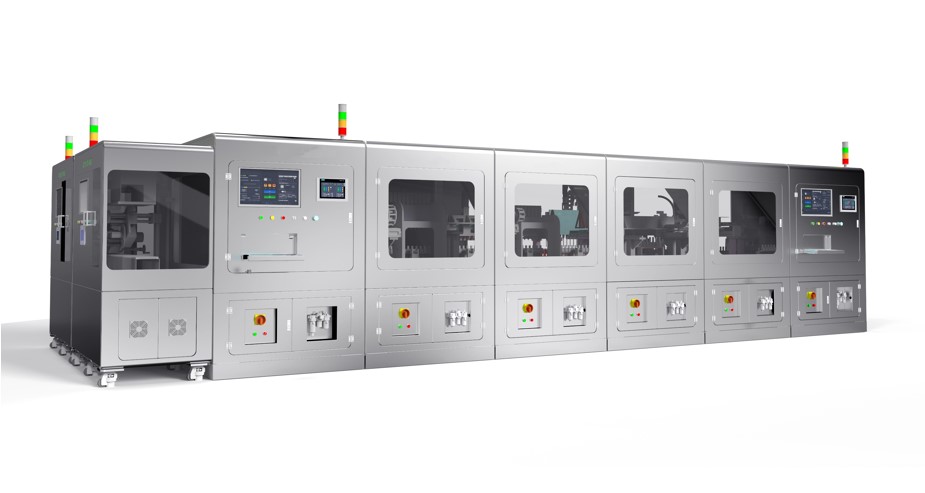

Auto Assembly Machine Parameter value

External dimension:  11000mm*4500mm*2200mm

Production capacities: ≥100pcs/min

Input pressure: ≥0.6MPa

Input voltage: AC 220V 50Hz

Data detection method: Data detection method

Finished product testing methods: CCD

Satisfactory rate: ≥99.2%

Loading and unloading methods:  Auto

Software control methods: SIMENS PLC

Software human machine interaction: Wirantone touch panel

Safety protection: Software interlock+Safety door+emergency stop switch

Operating temperature: Between 15°C and 35°C

Operating relative humidity:  Between 30 and 75 percent
