Device Features

l  One pen for all test items and complied with regulatory requirements

l  Test data can be traced and audited

l  Can be used for production in- process control and product development

l  Compatible with the products from main international manufacturers

Contact us for detail Datasheet

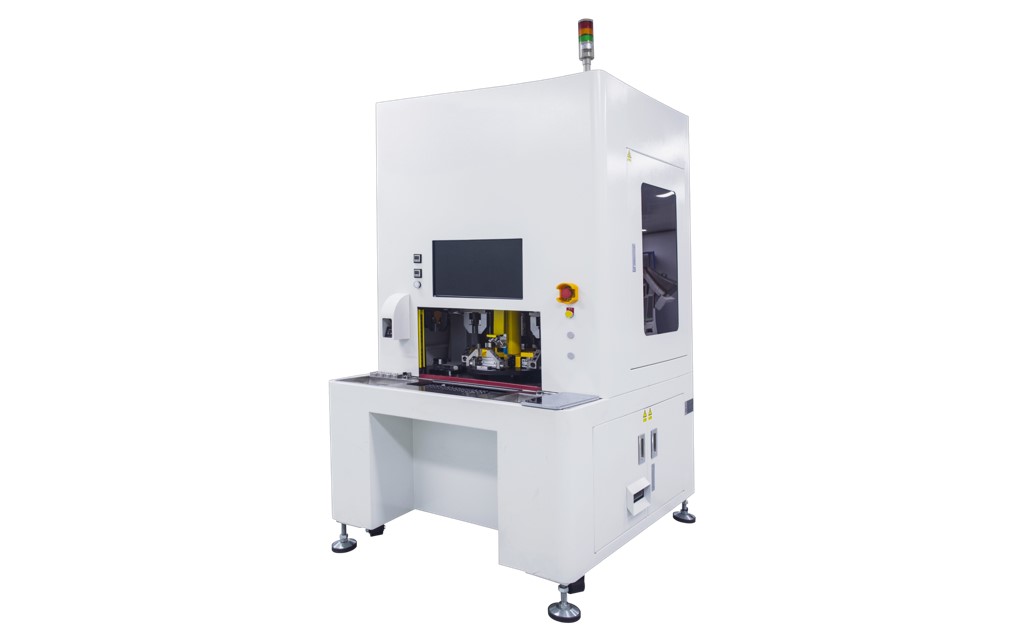

Testing Machine Parameter value

l  External dimension： 1100mm*1240mm*1950mm

l  Speed： 6-8pcs/min

l  Feeding mode： Manual

l  Input pressure：≥0.6MPa

l  Input voltage：AC 220V 50Hz

l  Cleanliness： ＜100,000 class in  equipment

l  Data detection method：Pressure sensor，visual inspection，electronic scales

l  Sensor basic accuracy： 0.2N

l  Vision basic accuracy：0.02mm

l  Basic precision of electronic scales：0.001g

l  Software control methods：PC

l  Software human machine interaction：Industrial controller

l  Product information recording methods：Scanner

l  Operating temperature： 20±5°C

l  Operating relative humidity: 30-60 percent non-condensation

l  Air environment: No dust, flammable and explosive, corrosive gases

l  Working system: Progression

l  Safety protection: Safety door lock+ dual start button + safety light curtain+ emergency stop switch
