Device Features

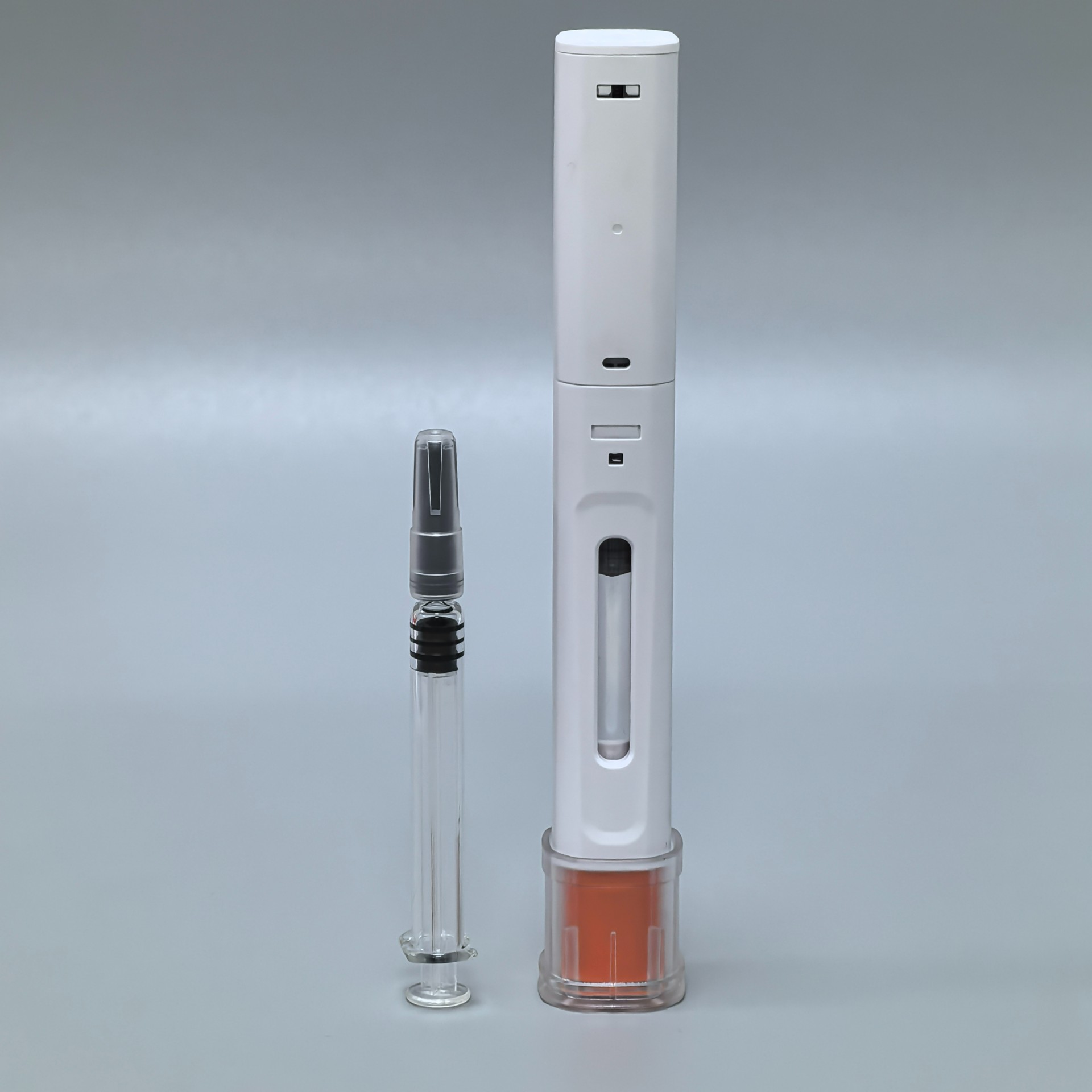

The model Imoge/Honor/Grow autoinjector is an automated injection device for 1 ml/2.25 ml long pre-filled glass or polymer syringes suitable for all patient groups. The device is triggered by push-on-skin activation which is convenient, ergonomic and preferred by patients. Built on a modular platform technology, Imogen is designed to meet the evolving requirements of future autoinjectors, such as introducing unique designs for branding and user requirements, as well as high-volume manufacturing.

●  Simple 2-step operation

●   Needle cover activation

●   Push-on-skin release

●   Audible, visual, and tactile feedback

●  One-handed operation

●   Ultra-compact design

●   Permanently hidden needle

●   Passive locking needle cover

●   Proven platform product for low risk and short time to market

Contact us for detail Datasheet

Customization and Manufacturing

●  The illustration shows some possibilities for changing shape and color based on the definition limits of manufacturing equipment.

●  The design features a plastic casing structure that can freely create unique, aesthetically pleasing, and ergonomic shapes.

●  Different surface materials or structures can be used to improve grip and highlight how to hold and use the device.

●  Configurations with different fill volumes such as 1ml, 2.25ml, and viscosity allow the platform to be used for multiple projects.

●  A simple terminal assembly process and professional technical support from the factory ensure low-cost products.

●  Compatible with glass and polymer syringes from all major manufacturers.

Device type Disposable autoinjector

Primary container：1 ml/2.25 ml long pre-filled syringe

Usage： Single Dose | Disposable

Dosage type:  Fixed | Full contents

Route of administration：Subcutaneous

Activation: Needle cover

Injection feedback：Audible click at beginning and toward end of injection, viewing window

Variations : Honor 1ml Grow 2.25ml
